Run Capacitors for Electric Motors, Fans and Cooling Systems

A cooling fan that doesn't run properly can take an entire system out of action. If you've traced the fault to a run capacitor, choose a suitable replacement based on the motor's requirements, the capacitor rating, and how it fits into the equipment.

BCB Sales & Service supplies run capacitors for motor applications, with four-terminal and flying-lead options across our capacitor ranges. Browse the products below, or contact our team with your part details for help narrowing down the options.

Motor Run Capacitors That Support Everyday Air Movement

A run capacitor is an electric motor capacitor intended for the operating duty specified by the motor manufacturer. In a motor designed to use one, it forms part of the circuit while the motor is operating. Its job is different from a component that only assists during startup. It helps create the electrical conditions the motor needs to turn its load, whether that load is a fan blade or a blower wheel.

This matters when equipment spends hours moving air through a home, workshop or commercial system. The replacement needs to suit the motor's design throughout operation. A capacitor that fits the available space isn't necessarily the right electrical match.

Our range gives you a way to compare the relevant ratings and connection formats before ordering. If the equipment's required specification is unclear, have it confirmed before selecting a part.

Fan Motor Capacitors for Cooling and Ventilation Applications

Fans move air in different ways, but the replacement principle stays the same: identify the motor and use its specified capacitor requirements. A small ventilation fan and a larger cooling-system fan can have different demands even when their capacitors look similar.

If you are also investigating the motor itself, our condenser fan motor collection provides a separate route to replacement motors. A slow or humming fan can have multiple causes, so identifying the fault first helps you avoid ordering a component that won't solve the problem.

Supporting Refrigeration and Cooling Fan Applications

Cooling equipment needs air to move through the intended parts of the system. When a fan motor uses a run capacitor, the right component supports that motor's operation; it doesn't replace the need to check the rest of the equipment. A replacement must suit the specific fan, not the general description of the cooling system.

This is especially useful when comparing components from different pieces of equipment on the same site. Keep each motor's requirements with its own part details. A capacitor taken from another fan is not automatically suitable because the two systems perform a similar job.

Four-Terminal Run Capacitors and Flying-Lead Options

Connection format is one of the practical differences you will notice when comparing a motor run capacitor. The right arrangement must suit the existing equipment and its electrical requirements.

Four-Terminal Capacitors for Matching Existing Connections

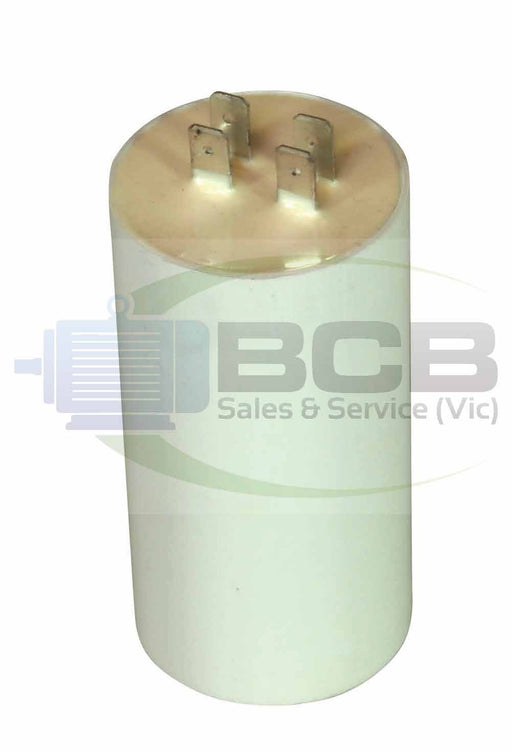

Our four-terminal run capacitors provide an option where that terminal arrangement is required. They let buyers compare capacitance, voltage rating, and case dimensions in a familiar physical format.

The number of visible tabs does not tell you everything about the component. Check the terminal arrangement against the original part's documentation rather than using appearance as a wiring guide. Matching the connection format makes selection more specific, but it does not replace checking the other ratings.

Run Capacitors with Flying Leads

Where the equipment requires attached leads, explore our run capacitors with flying leads. This format has wires extending from the case rather than the same exposed terminal layout as a four-terminal design.

Lead length, case size, and how the capacitor is secured can affect whether a replacement fits the application. Consider the space available for the component and its connections, not just the main body. Compare format changes against equipment requirements, rather than treating them as automatic substitutions.

Match the Run Capacitor Rating to the Motor

The markings on the existing component are a useful starting point. Motor and equipment documentation helps confirm what to fit, especially if an earlier repair may have introduced a different part.

Capacitance in Microfarads

Capacitance is shown in microfarads, usually written as µF or uF. It is a specification to match, not a performance setting to increase. Choosing a larger value simply because it is available is not how you upgrade a motor.

Record the complete capacitance marking, including any tolerance shown. If the label is faded, do not guess from the size of the case. The motor model, equipment details or manufacturer's documentation may provide another way to establish the required value.

Voltage Rating and Capacitor Type

Also check the capacitor's voltage rating and intended duty. A shared capacitance value does not make two different types interchangeable. Use a component that meets the manufacturer's requirements for the application, with any alternative confirmed by a suitably qualified person.

Think of the specification as a set of requirements that work together. Capacitance, type, voltage rating and operating conditions all matter; matching one field does not cancel out a difference in another.

Case Size and Mounting Matter in a Replacement

An electrical match still needs a practical home inside the equipment. Check the diameter and overall height, allowing room for terminals or leads, then compare the mounting arrangement with the available space.

A replacement that prevents a cover from closing or leaves connections poorly accommodated creates another problem. Product dimensions help narrow the choice, while drawings and the existing installation provide the context for checking the fit.

For equipment maintained over several years, keeping the motor details and replacement-part records together can make the next identification task easier. It also helps distinguish a confirmed specification from an assumption carried over from a previous repair.

Run Capacitor or Start Capacitor?

Start and run capacitors have different duties. A start capacitor assists during the starting stage in motors designed for that arrangement, while a run capacitor is intended for its specified operating role. They should not be swapped simply because both are described as motor capacitors.

If you need the starting type, browse our separate start-capacitor collection. For a fuller explanation of the difference, read our guide to how start and run capacitors work.

Find a Suitable Run Capacitor with BCB Sales & Service

When enquiring about a replacement, the most useful details are:

• Existing part markings: Include the capacitance, voltage rating and any part number.
• Equipment information: Provide the brand and model of the system and motor where available.
• Physical format: Note the case dimensions, mounting and terminal or lead arrangement.
• Confirmed requirements: Share the specification supplied by your technician if the component has been professionally diagnosed.

A clear label photo can help, provided it can be obtained safely. A suitably qualified technician should handle capacitors and electrical equipment; this is a parts-selection guide rather than testing or installation advice.

Browse the range or send BCB your replacement-part enquiry so we can help identify the relevant options.

Run Capacitor FAQs

What should I check before ordering a run capacitor?

Check the required capacitor type, capacitance, voltage rating, terminal arrangement, dimensions and mounting. Use the motor or equipment documentation to confirm the requirements if the original part's markings are incomplete or uncertain.

Can a start capacitor replace a run capacitor?

No. Their operating duties differ. Select the type specified for the motor rather than substituting one because its size or markings appear close to the original.

Do dimensions and terminals need to match?

They need to suit the equipment's mounting space and connections. Electrical compatibility alone doesn't confirm a part will fit properly, so consider both aspects before ordering.

Can BCB help from a photograph?

A clear photo of the label, along with the equipment model and physical details, gives our team the information they need for a parts enquiry. If accessing the component involves electrical work, ask your technician to obtain those details.
