Types of Capacitors and Their Applications in Motor Systems

Capacitors play a vital role in motor systems, helping everything run smoothly and efficiently. But what exactly does a capacitor do? They store electrical energy and release it, like a temporary battery, when needed. This stored energy helps start motors, filter out noise, and stabilise voltage. Knowing which capacitor type is right for your motor setup can save you from performance issues down the road.



Let’s dive into the different types of capacitors and their applications in electric motor systems.



What Does a Capacitor Do in Motor Systems?

Capacitors are like short-term energy banks for electrical circuits. They consist of two plates separated by a dielectric material, which stores energy when a voltage is applied. Motor systems can give an initial power boost during startup or smooth out power fluctuations while the motor is running. Different capacitor types have unique characteristics that suit specific applications, so understanding them helps you pick the right one for your needs.



Common Types of Capacitors



1. Ceramic Capacitors

• What They Are: Ceramic capacitors are small, versatile, and used in many electronic circuits. They are made from ceramic material, the dielectric between the plates.
• Uses in Motors: These capacitors work great in high-frequency applications and are often found in motor drives, where they help filter out noise. They’re not usually the main players in motor start applications but are crucial in ensuring the motor runs smoothly by minimising interference.
• Why Use Them: They’re stable, reliable, and can handle various temperatures, making them a go-to choice for various electrical tasks.



2. Electrolytic Capacitors

• What They Are: Electrolytic capacitors are known for their high capacitance values, which means they can store much energy in a relatively small package. These are polarised capacitors, meaning they have a positive and a negative side that must be connected correctly.
• Uses in Motors: Electrolytic capacitors are commonly used in motor start applications, especially in DC motors. They provide a quick energy boost that helps the motor get up to speed. You’ll also see them in circuits that need steady, filtered voltage.
• Benefits: High capacitance makes them perfect for tasks that quickly need large amounts of energy. However, they must be installed correctly due to their polarity; otherwise, they can fail or even explode.



3. Film Capacitors

• What They Are: Film capacitors use a thin plastic film as the dielectric, offering excellent stability and reliability. They come in various shapes and sizes, often wrapped in protective casings.
• Uses in Motors: These capacitors are frequently used as run capacitors in AC motor systems. A run capacitor stays in the circuit when the motor runs, improving efficiency and helping maintain a consistent current flow.
• Why They’re Great: Film capacitors are non-polarised, which makes them safer and easier to install. They’re also durable and can handle high voltage, making them popular for continuous motor operation.



4. Tantalum Capacitors

• What They Are: Tantalum capacitors are compact and have a high capacitance-to-volume ratio, making them perfect for smaller devices where space is at a premium.
• Uses in Motors: While not as common in heavy-duty motor applications, tantalum capacitors are used in smaller control circuits within the motor system. They offer good stability and reliability in varying temperatures.
• Advantages: These capacitors are stable, have low leakage, and resist high temperatures. However, they are sensitive to voltage spikes, so they’re not ideal for high-power motor starts.

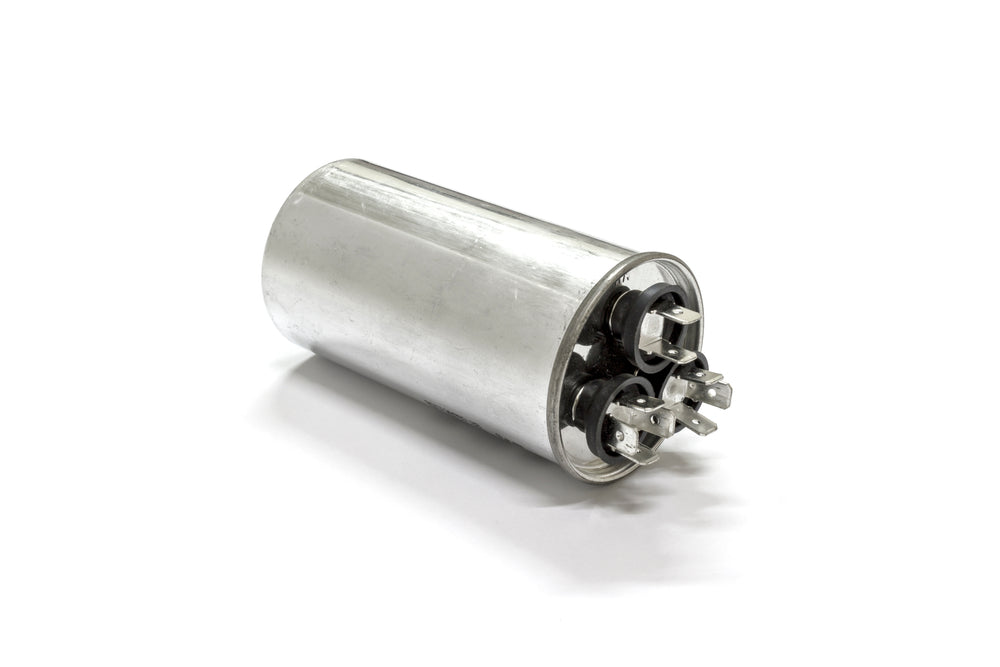

5. Start and Run Capacitors

• What They Are: Specifically designed for motors, start and run capacitors serve different roles but are both crucial in single-phase motors. Start capacitors help the motor kick off with a burst of energy, while run capacitors stay engaged during operation to maintain efficiency.
• Applications:
• Start Capacitors: Provide a high burst of energy to get the motor running, commonly used in applications like air conditioners, pumps, and compressors.
• Run Capacitors: Stay in the circuit to balance the voltage, reducing energy consumption and improving motor efficiency.
• Why They’re Essential: These capacitors ensure motors run smoothly and start without hiccups.



How to Test a Capacitor

Testing a capacitor ensures it’s functioning properly, especially before installing it in a critical motor system.



Here’s a quick guide on how to check your capacitors:

1. Look for Physical Damage: Before testing, inspect the capacitor for any visible signs of damage, like bulging, leaking, or burns.
2. Measure Capacitance: Use a multimeter set to the capacitance mode to measure whether the capacitor holds the charge it’s rated for.
3. Resistance Check: Set your multimeter to resistance mode. A good capacitor will show a low resistance that increases as it charges up during the test.
4. Voltage Test: Apply voltage across the capacitor (within safe limits) and observe its behaviour. It may be faulty if it doesn’t charge or discharges too quickly.



Choosing the Right Capacitor for Your Motor System

When selecting a capacitor for a motor, there are a few key things to consider:



• Capacitance Value: Make sure the capacitance matches your motor’s requirements. A start capacitor, for example, needs a much higher capacitance than a run capacitor.
• Voltage Rating: To avoid potential failures, always choose a capacitor with a voltage rating higher than what your system will use.
• Temperature Range: If your motor operates in a hot environment, pick a capacitor that can handle higher temperatures to ensure longevity and performance.
• Size and Fit: Physical space can be a limiting factor, so ensure the capacitor fits your motor system without obstructing other components.



Find Various Types of Capacitors Available with BCB Sales & Service

Choosing the right capacitor type can make all the difference in how well your motor system performs. Each type has its role, from ceramic capacitors filtering out unwanted noise to electrolytic capacitors providing crucial startup energy. For the best results, make sure to test your capacitors regularly and select ones that match your motor’s specific needs.
